Hikvision 2MP Network Mini PTZ Dome Camera

Hikvision 2MP Network Mini PTZ Dome Camera

Others Tsh630,000
US Tsh600,000

  • 1/3” Progressive Scan CMOS
  • 1920 x 1080P
  • 4X Optical Zoom
  • DWDR
  • Support IP67/IK10
  • Support PoE(802.3af)
  • Support RS485
  • Support plug & play
Free delivery on orders over 100,000/-*
7 day faulty item retun policy

The DS-2DE3204W-DE is a mini PTZ dome camera from Hikvision that supports 4 x optical zoom and has a vari focal 2.8mm ~ 12mm lens making it suitable for almost any application. This camera uses a wide range of smart features to improve the security of your home/business such as line crossing detection and motion detection.

With IP67 rated weatherproof housing and IK10 rated vandal proof housing, the DS-2DE3204W-DE can be mounted outside without any worries of damage.

Specifications:

Camera
Image Sensor: | 1/3″ Progressive Scan CMOS
Effective Pixels: | 1920(H)x1080(V)
Minimum Illumination: | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: | Auto/Manual
BLC: | ON/OFF
HLC: | Support
WDR: | DWDR
Shutter Time: | 1/1~1/10,000s
Day& Night: | ICR
Digital Zoom: | 16X
Privacy Masking: | 8 privacy masks programmable
Auto Focus: | Auto / Semi-automatic / Manual

Lens
Focal Length: | 2.8~12mm, 4x
Zoom Speed: | Approx.1s(Wide~Tele)
Angle of View: | 105~33.5 degree (Wide~Tele)
Aperture Range: | F1.6 ~F2.7

Pan & Tilt
Pan Range: | Pan: 0~350°
Pan Speed: | Pan Manual Speed: 0.1°~60°/s
Tilt Range: | Tilt: 0°~90°
Tilt Speed: | Tilt Manual Speed: 0.1°~50°/s
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: | 300
Power loss recovery: | Support
Park Action: | Preset
PTZ Position Display: | ON/OFF

Alarm
Alarm Input: | 1
Alarm Output: | 1
Alarm Actions: | Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage

Input & Output
Audio Input: | 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: | 1 Audio output interface
Line level, impedance: 600Ω

Network
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: | 1920×1080
Main Stream: | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream: | 50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288)
60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240)
Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)
Video Compression: | H.264 / MJPEG
ROI encoding: | Support 4 areas with adjustable levels
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
No. of Simultaneous Users: | Up to 20 users
Dual Stream: | Support
Mini SD Card: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
Security Measures: | User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Hik-Connect: | Support

Client GUI
Date & Time Display: | Time: Week: Date, 6 formats on the Client
Client: | Support iVMS-4200
Web Browser: | IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 +

General
Menu Language: | English
Power Supply: | 12V DC or PoE((802.3af, class3)
Power Consumption: | Max. 8W
Working Temperature/Humidity: | -30°C ~ 65°C (-22°F ~ 149°F)
Protection Level: | IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting: | Various mounting modes optional

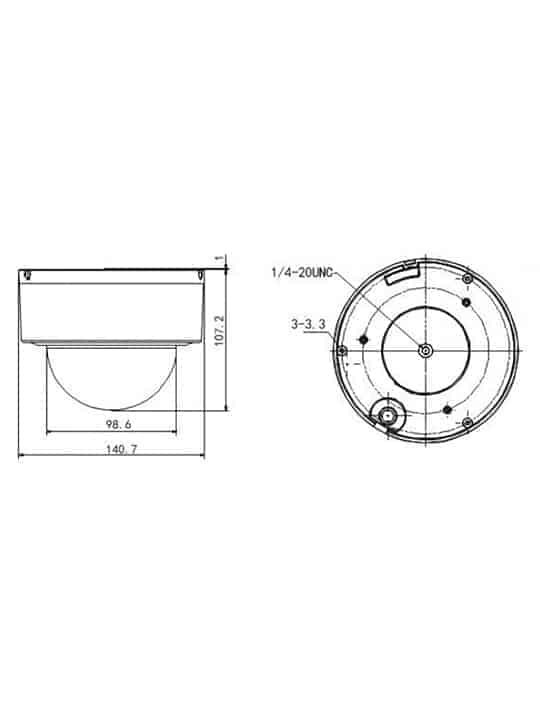

Dimensions: | Φ140.7×107.2mm
Weight (approx.): | 950g
Mount Option: | Wall mount: DS-1273ZJ -PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1280ZJ -PT6
